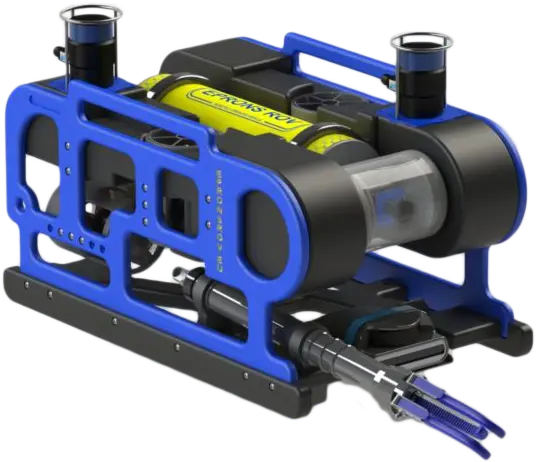

ALPHAROV D300
ALPHAROV PROF D300 working depth till 300 meters.
Tether length 300 meters (up to 1200 m).
Front: Color Full HD and B/W cameras. Rear: additional color/BW camera Full HD 1080P 2MP.
Live video recording at the control case with Full HD 1920×1080 – 60 fps quality.
7 Brushless thrusters: 4 Horizontal; 2 Vertical; 1 Lateral.

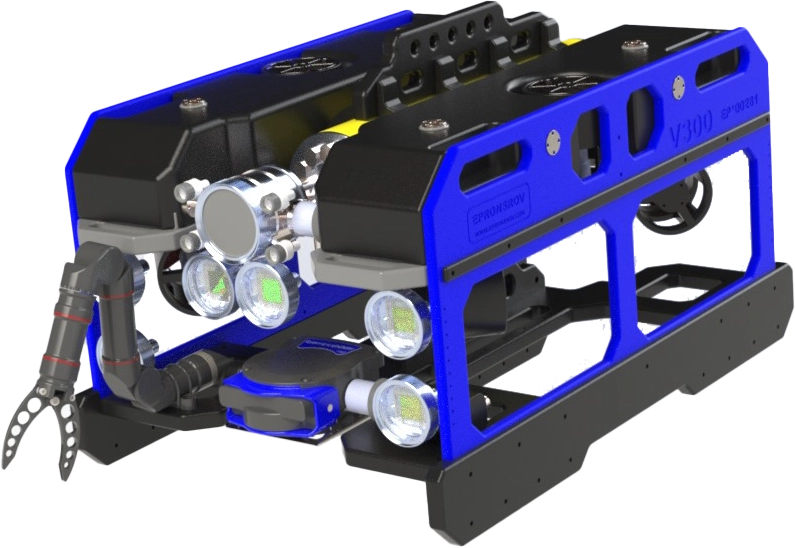

Vectored thrusters configuration available for this model.
Base Model Features
ALPHAROV D300 model adapted for your applications
Main features
Depth range: Up to 300 meters
ROV Weight in air: ≈ 35 Kg
ROV Dimensions:
L 730 x W 500 x H 410 (mm).
With manipulator: L 870 x W 500 x H 410 (mm). Fit for pipes from Ø 600 mm
Payload: up to 7 kg
Power requirements
(Not include accessories)
Single phase 220 – 240 VAC
50 Hz
Up to 3000 Watt
Tether Voltage: up to 400 VDC
ROV Construction
Control case
Dimensions: HPRC Case
L 620 x W 480 x H 280 (mm) Weight about 16 kg
Include: Main power input Cable (tether) input 1 HDMI Video out
3 USB connection
1 USB Hand control Joystick 15,6 Inch FHD Monitor
Front camera
SONY Full HD Color camera
Sensitivity up to 0.1 Lux
Tilt 170° degree
View Angle: Wide
Fixed focus
Propulsion
6 thruster’s configuration:
(4 horizontal/2 vertical)
Vectored configuration
Motor Type: Brushless
Thrust: 6 Kg per thruster
ROV Forward speed:
up to 5,83 Knots (3 m/sec)
Sensors
Depth Sensor
3D Gyro Compass
Water Temperature
System Voltage and Amperage
Cable (Tether)
Cable type and length:
about 8 mm in diameter Neutral buoyancy 300 Meters on the reel with slip ring (Up to 1200 meters)
Cable reel: Metal cable reel
300 mm-400 mm-460 mm
Connectors type ROV-Cable:
AR Dry connector
Control functions
Autoheading, autodepth and stabilization
Lighting
Forward 6 pcs dimming LED (about 6000 Lumen in total) lights
Video-overlay
Heading, date and time, tilt position, depth, thrusters power,
Internal humidity, temperature
Optional: CP probe / Metal thickness data / GPS data.
Live video recording
High-Performance Computer with video recorder and complete control software
Effortless Operation
Additional equipment and accessories
You will find wide range of additional equipment and accessories that can be adapted for your applications
Note: Specifications and prices may be changed without prior notice.

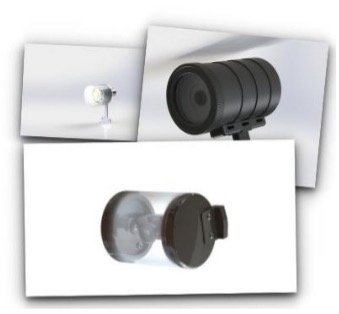

SONY Color camera
2MP 1080P
Rear camera (With two LED Lights) without tilt
Manually adjustable 4 Laser pointers
Acoustic positioning USBL system
Doppler velocity log (DVL)
