Base Model Features

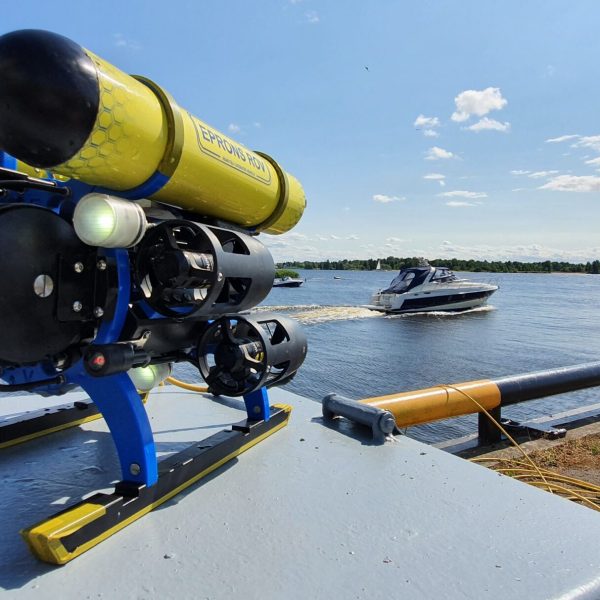

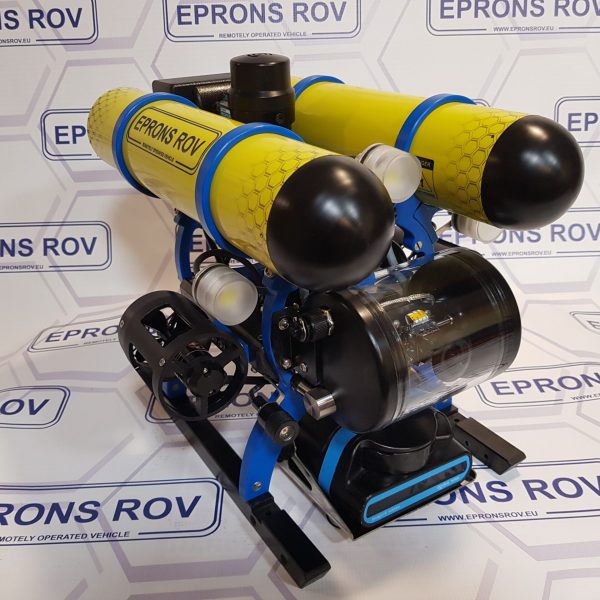

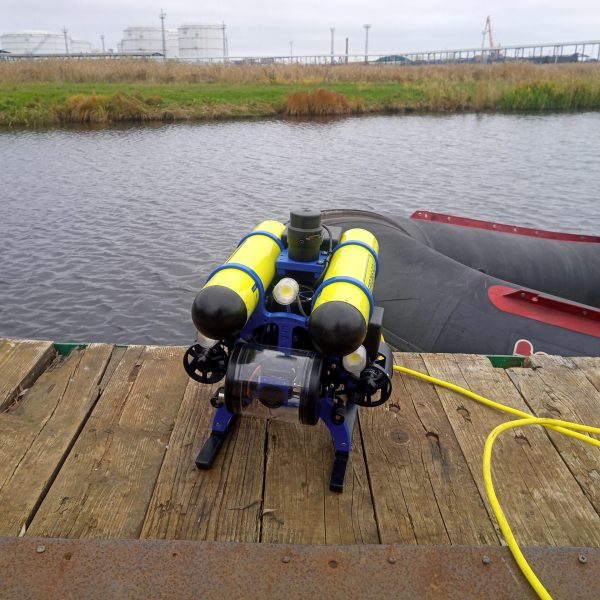

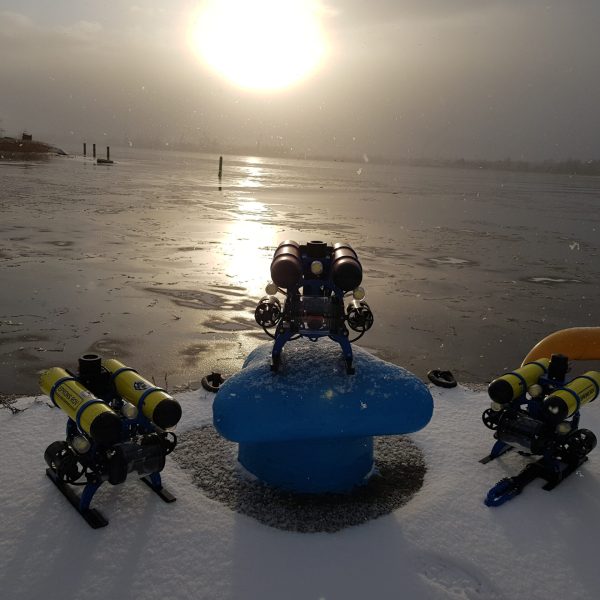

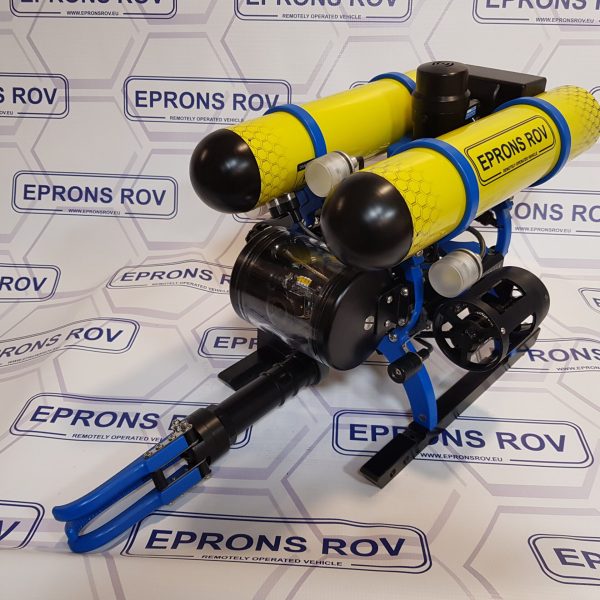

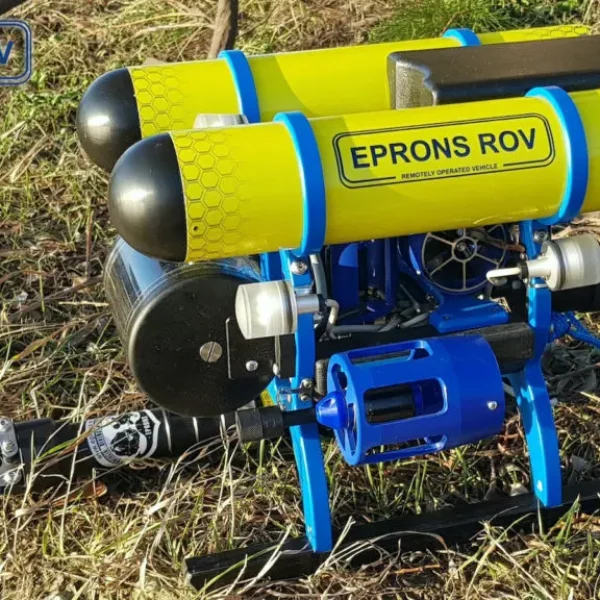

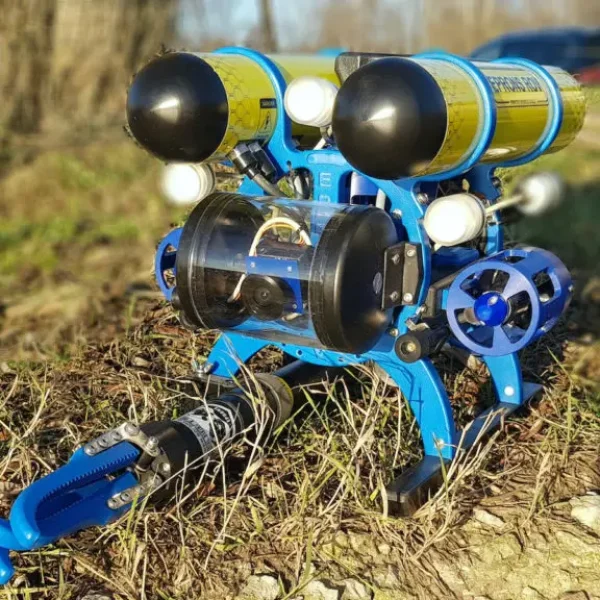

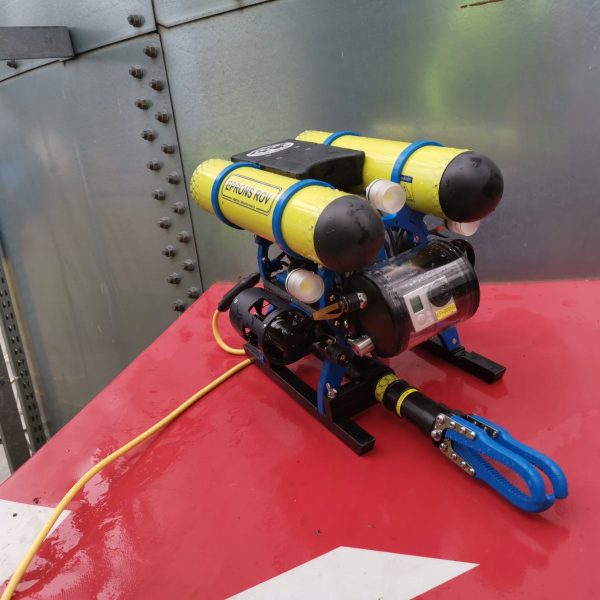

ALPHAROV D150 model adapted for your applications
Main features
Depth range: Up to 150 meters
ROV Weight in air: ≈ 9 Kg
ROV Dimensions:

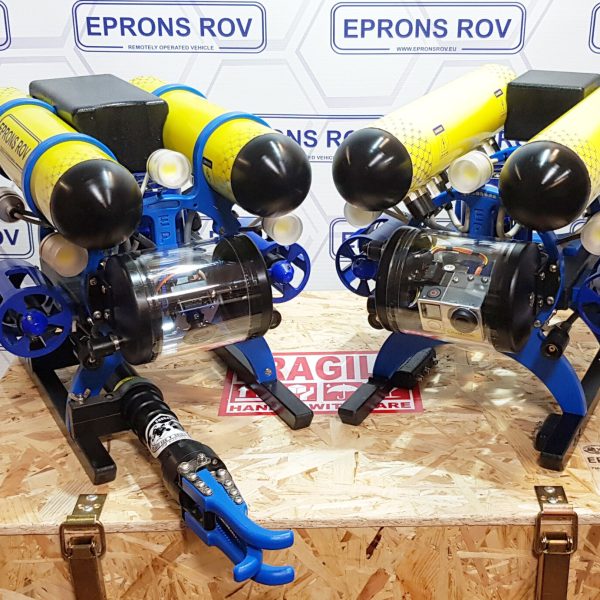

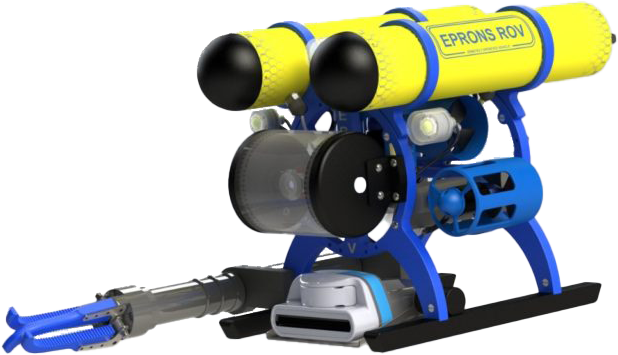

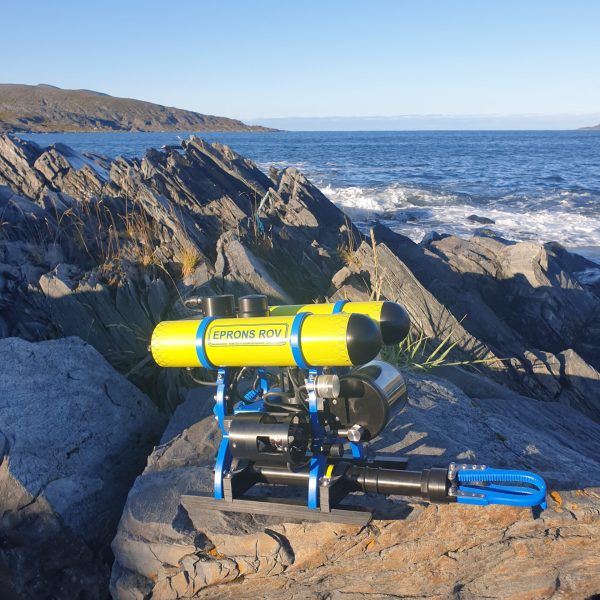

L 380 x W 310 x H 300 (mm). With manipulator: L 600 x W 310 x H 300 (mm). Fit for pipes from Ø 330 mm
Payload: up to 3 kg
Power requirements
(Not include accessories)
Single phase 220 – 240 VAC
50 Hz
Up to 700 Watt
Tether Voltage: up to 300 VDC
ROV Construction

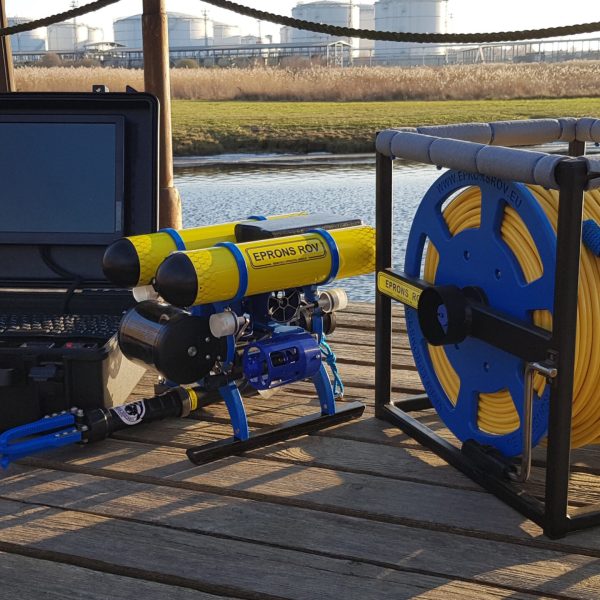

Control case
Dimensions: HPRC Case
L 480 x W 385 x H 190 (mm)
Weight about 12,5 kg
Include: Main power input Cable (tether) input 1 HDMI Video out
3 USB connection
1 USB Hand control Joystick 15,6 Inch FHD Monitor
Front camera
SONY Color camera
Sensitivity up to 0.01 Lux
H.264 2MP 1080P
Manually adjustable focus Tilt 170° degree
View Angle:
Propulsion
4 thruster’s configuration:
(2 horizontal/1 vertical/1 lateral)
Motor Type: Brushless
Thrust: 2 Kg per thruster
ROV Forward speed:
up to 3,89 Knots (2 m/sec)
Sensors
Depth Sensor
3D Gyro Compass
Water Temperature
System Voltage and Amperage
Cable (Tether)
Cable type and length:
about 8 mm in diameter Neutral buoyancy 150 Meters on the reel with slip ring
Cable reel: Plastic cable reel 300 mm-400 mm-460 mm
Connectors type ROV-Cable:
Dry connector
Control functions
Lighting
Forward 4 pcs dimming LED (about 4000 Lumen in total) lights

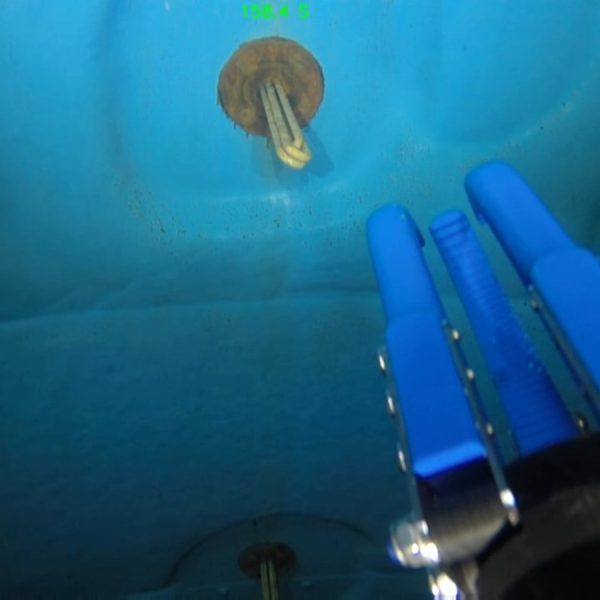

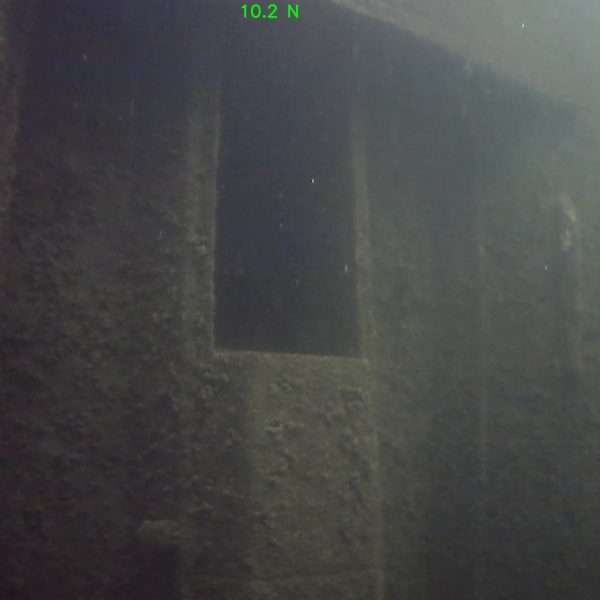

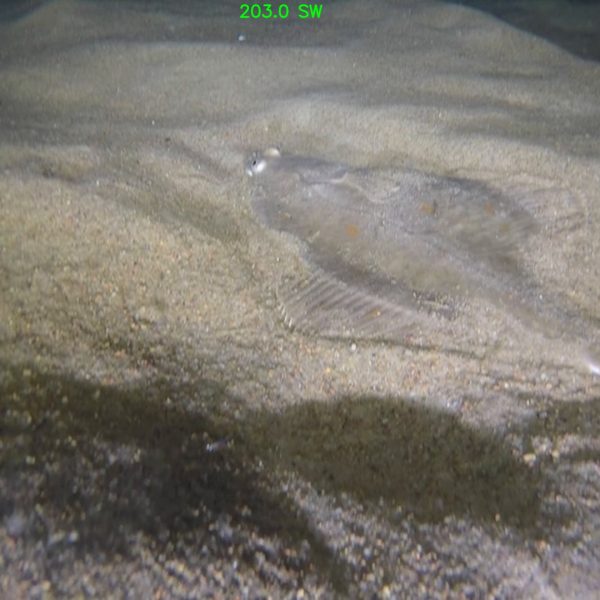

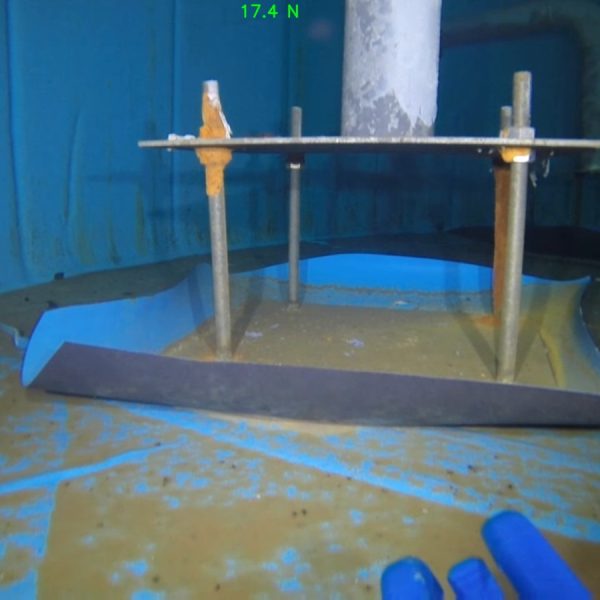

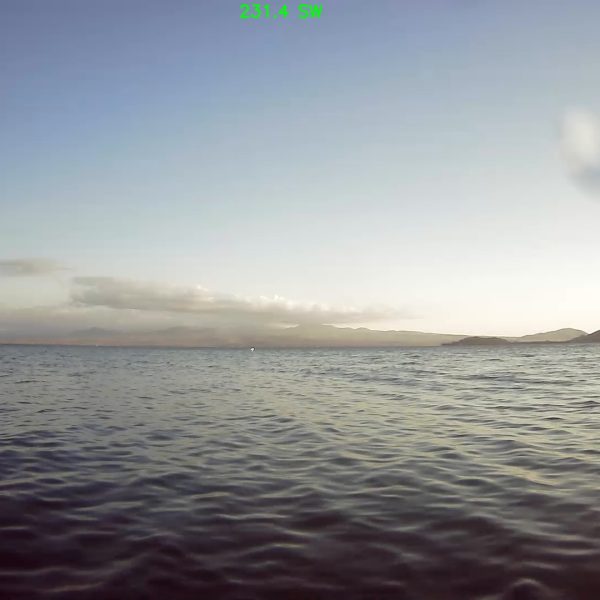

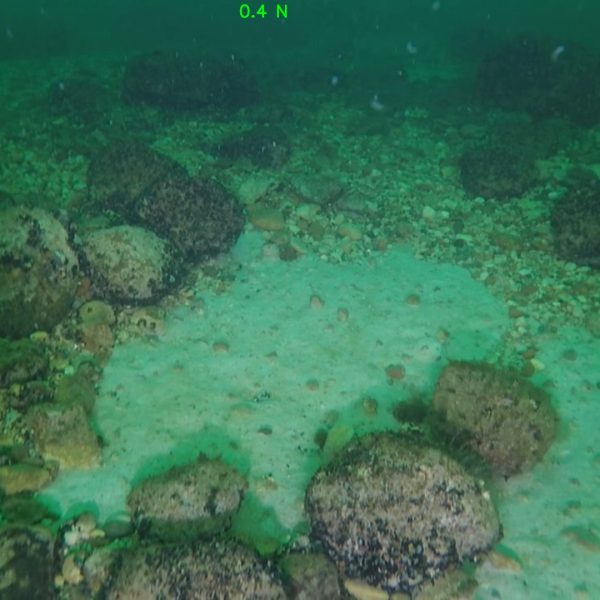

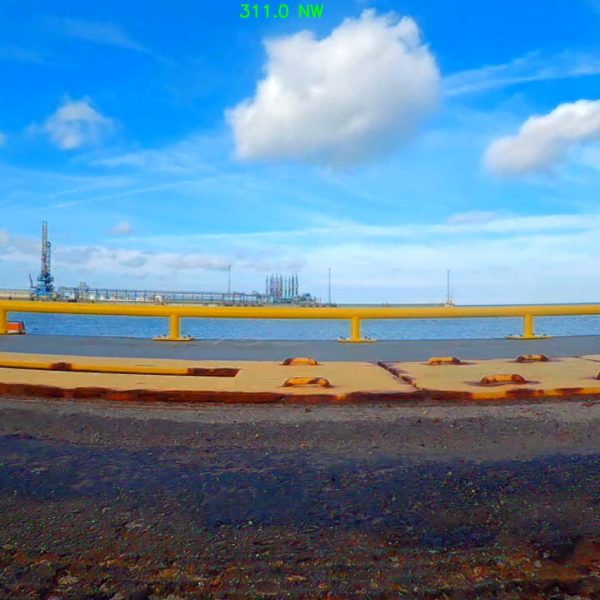

Video-overlay
Heading, date and time, tilt position, depth, thrusters power,
Internal humidity, temperature
Optional: CP probe / Metal thickness data / GPS data.
Live video recording
High-Performance Computer with video recorder and complete control software
Effortless Operation

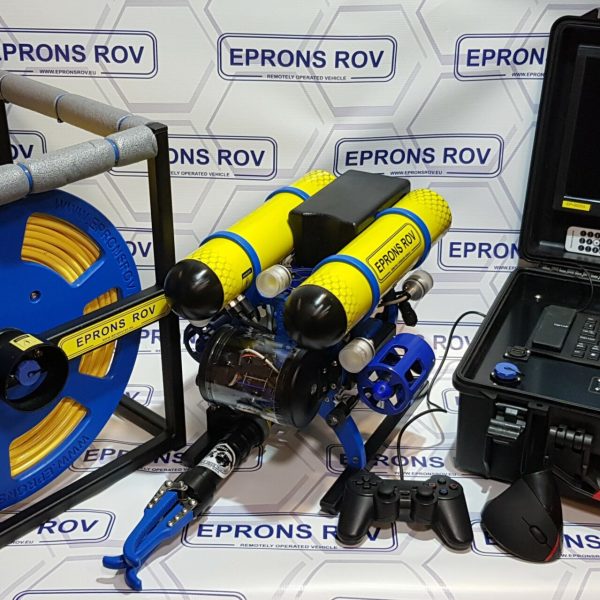

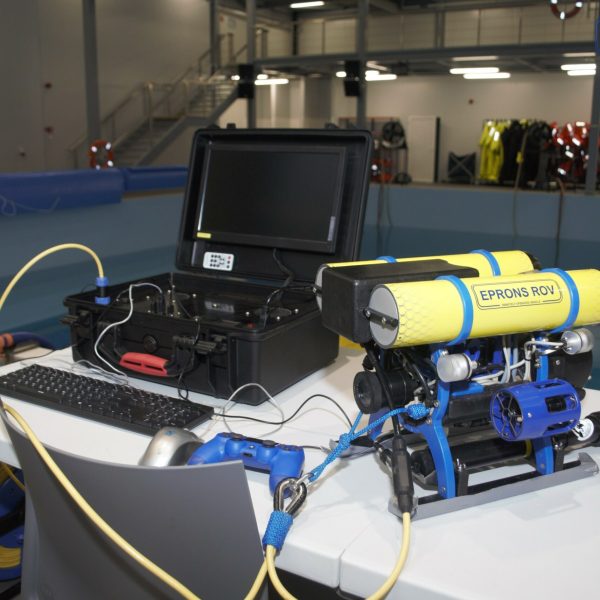

All ALPHAROV models are operated with an easy to use digital joystick from the control case. The console is build in a professional Pelican case and contains all electronics for the remote control, power supply and video processing including video text overlay.
Additional equipment and accessories
You will find wide range of additional equipment and accessories that can be adapted for your applications
Note: Specifications and prices may be changed without prior notice.
Round scan navigation sonar
Manually adjustable 2 Laser pointers
Acoustic positioning USBL system
Doppler velocity log (DVL)
